Hardware
X50
$499.00
Passport scanning and data extraction solution

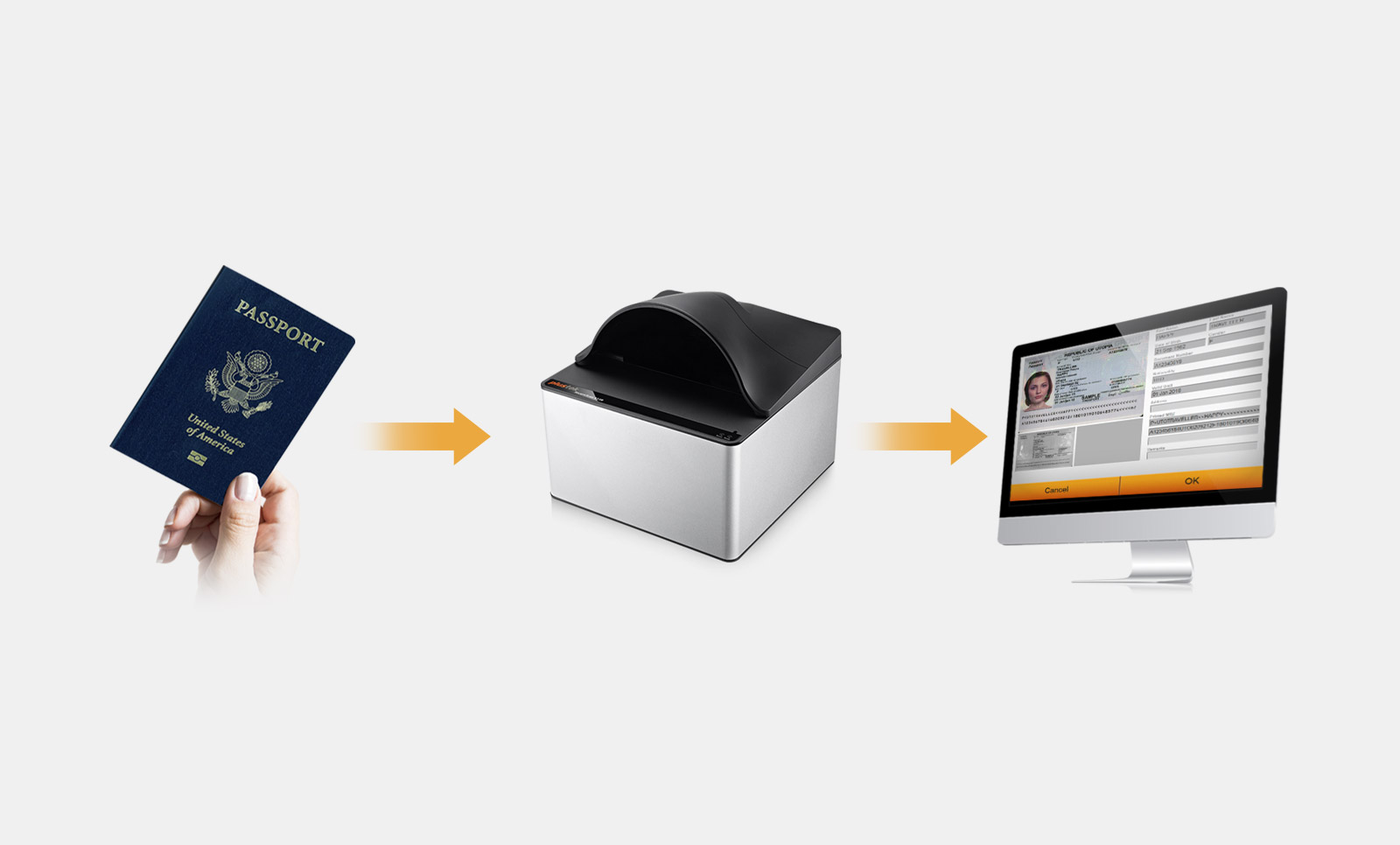

The X50 is a fast and easy way to scan passports and ID cards Compact design for one-step scanning to capture and extract passport information.
X50 Simplifies Passport Scanning and Data Extraction.
Compliant with ICAO Doc 9303 standard for machine readable travel documents and supports TD1/TD2/MRP/MRV sized document scanning.
X50 can capture and verify relevant data of all international passports,plastic ID cards and other documents.
X50 only takes approximately 1 second from scanning to showing on screen.Our built-in data recognition helps to read and input the customers profile data more accurately.
| Image Sensor | CMOS |
| Light Source | White LED |
| Optical Resolution | 5 Megapixels |
| Focus | Fixed |
| Scan Modes | Color: 24-bit Input; 24-bit Output |
| Scanning Speed | Approx. 1 sec (Color Mode, Full Page passport image capture) |
| Scanning Area (W x L) | Maximum: 127 x 95 mm (5″ x 3.74″) |
| Acceptable Paper Sizes (W x L) | Maximum: 125 x 88 mm (4.92″ x 3.46″) |
| Action Button | Dual Auto Detect Sensors |
| Power Supply | USB Power: 5V / 0.5A |
| Interface | USB 2.0 |
| Net Weight | 1.7 Kgs (3.78 Lbs) |

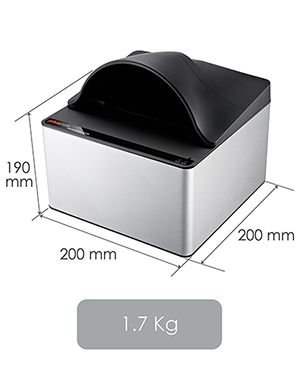

| Dimensions (W x D x H) | Without Cover: 200 x 200 x 119 mm (7.87″ x 7.87″ x 4.69″) |
| With Cover: 200 x 200 x 190 mm (7.87″ x 7.87″ x 7.48″) | |
| Operating System | Windows 7 / 8 / 8.1 / 10 / 11 |
| Linux compatibility is only available for system integrators. Please contact [email protected] for more info.(SDK only) | |
| Hardware Requirements | 2.0 GHz CPU processor or higher[1] |
| [1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher | |
| 4 GB RAM minimum (Recommended: 8 GB or more) | |
| 6 GB of hard-disk space for program installation | |
| USB2.0 or above | |
| Display dimensions of 1024×768 or greater |
