Hardware

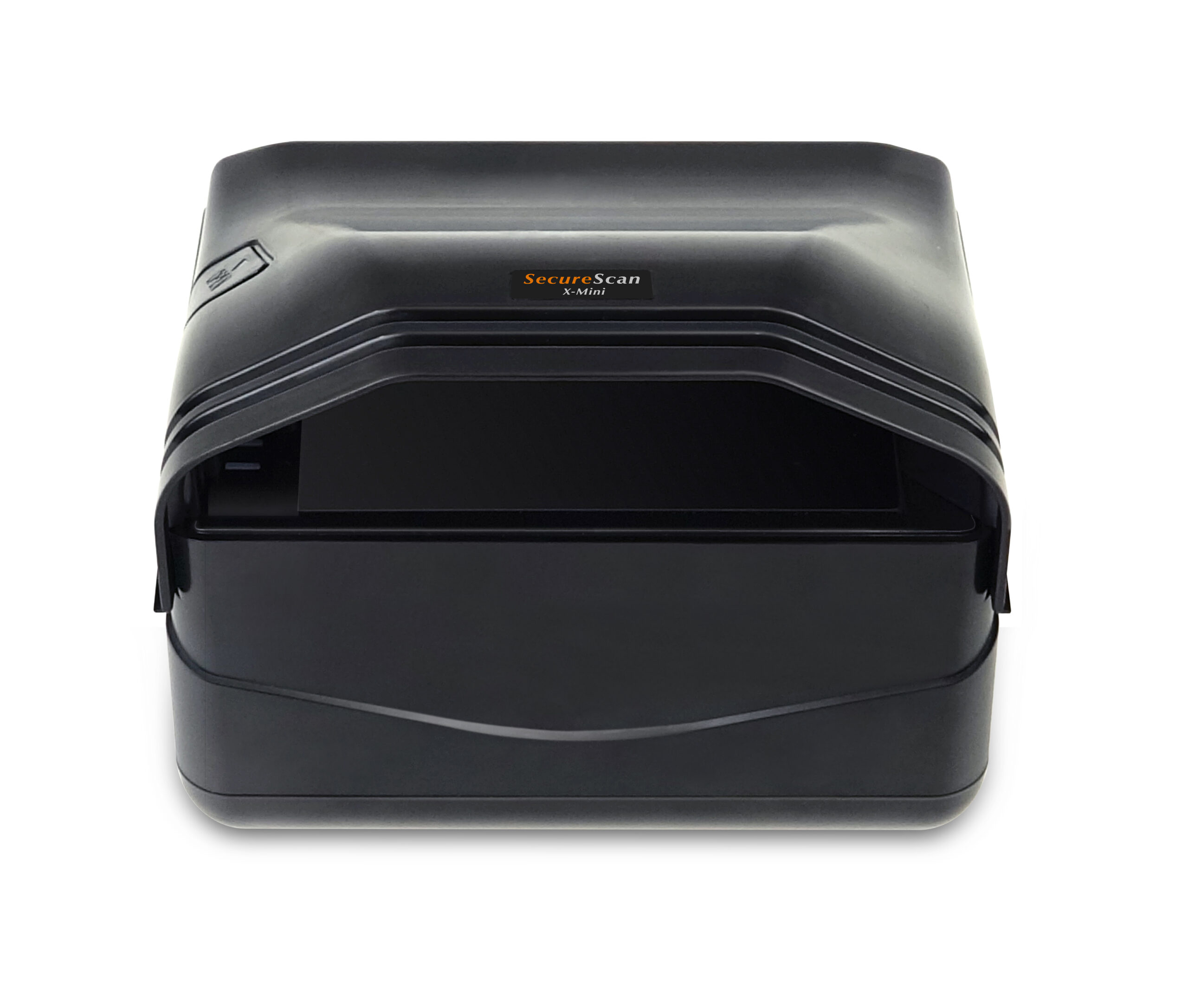

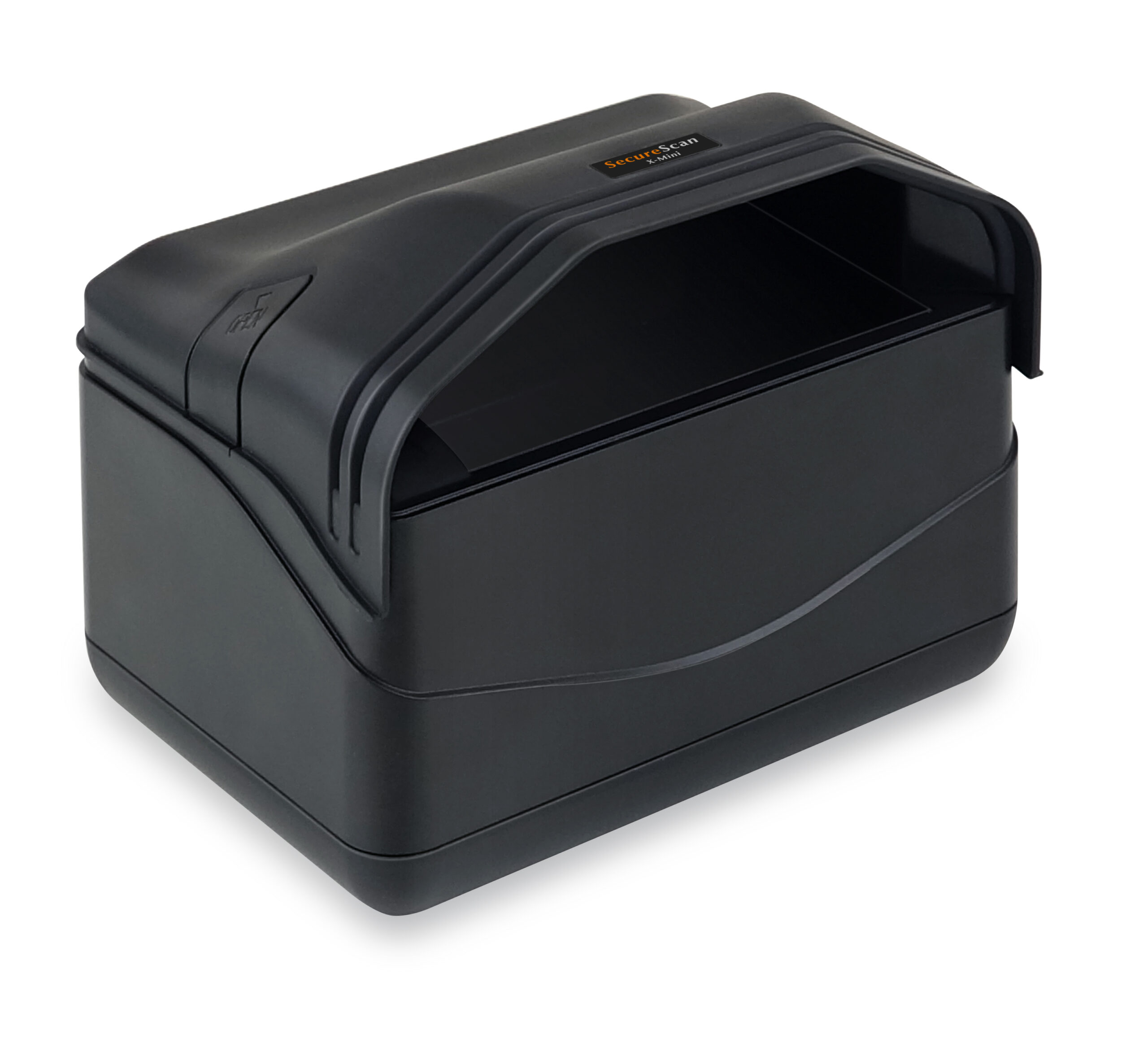

X-mini
Price range: $399.90 through $999.90
A Mini Solution to Boost up Your Business’Efficiency

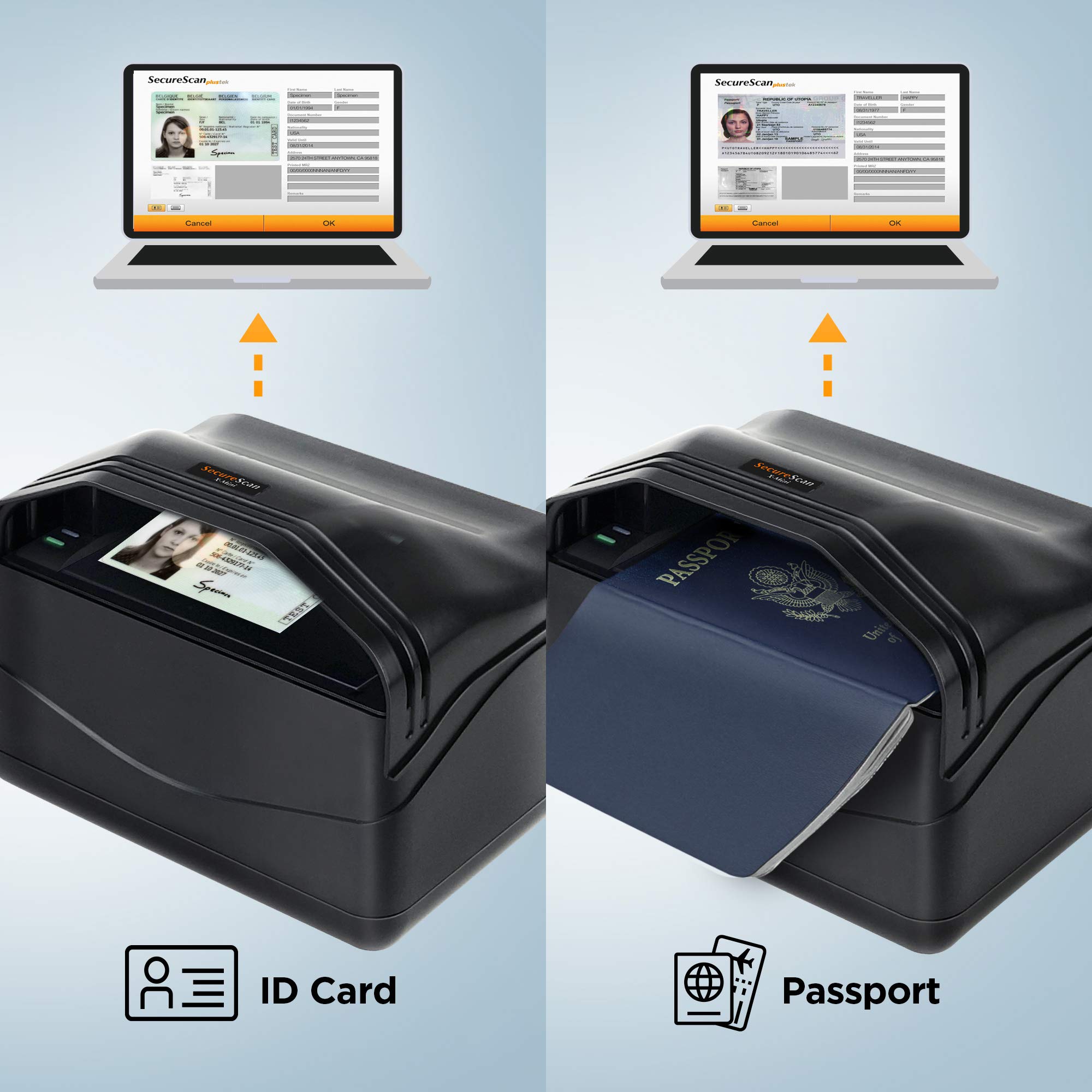

X-Mini can capture and verify relevant data of all international passports,plastic ID cards and other documents.
Completely Compliant with ICAO Doc 9303 Standards. Supporting TD1/TD2/MRP/MRV document size scanning, which include international passports and other travel documents.

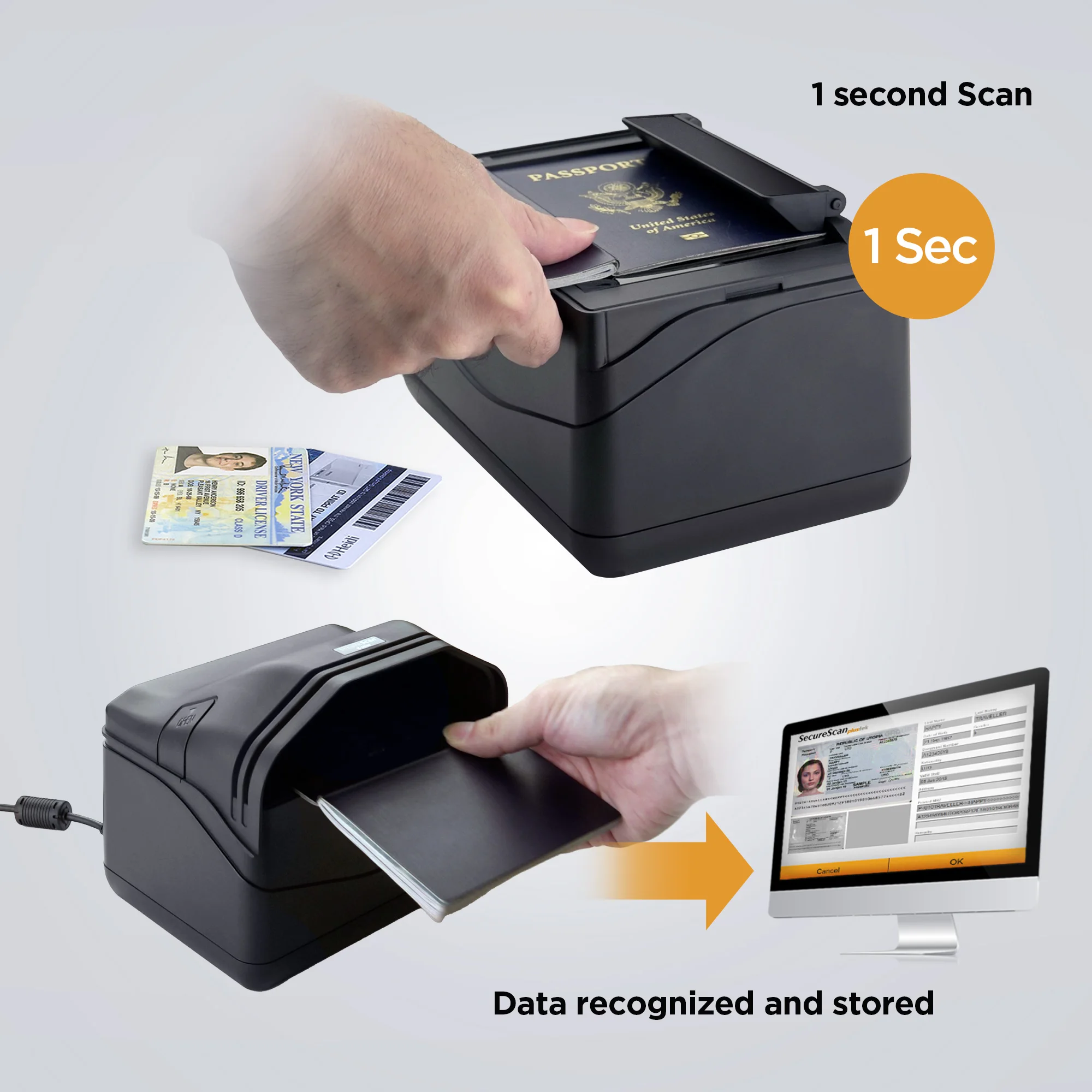

1-Second Quick Scan with Data Output. X-Mini only takes approximately 1 second from scanning to showing on screen.Our built-in data recognition helps to read and input the customers profile data more accurately.
| Image Sensor | CMOS |
|---|---|

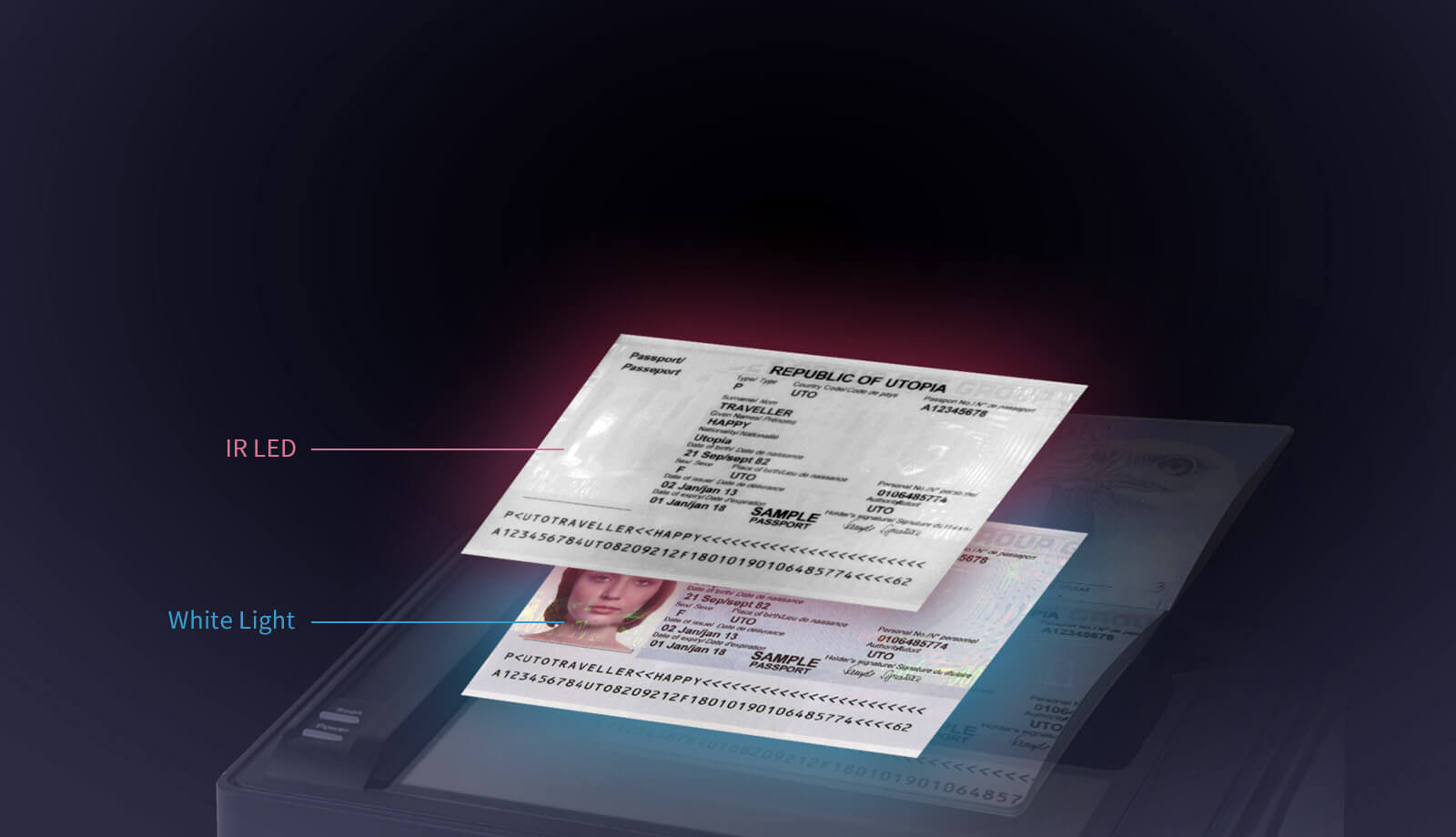

| Light Source | White LED / IR LED |
| Optical Resolution | 5 Megapixels |
| Focus | Fixed |
| Scan Modes | Color: 24-bit Input; 24-bit Output IR: 24-bit Input; 8-bit Output |
| Scanning Speed | Approx. 1 sec (Color Mode, Full Page passport image capture) |
| Scanning Area (W x L) | Max: 127 x 95 mm (5″ x 3.74″) |
| Acceptable Paper Sizes (W x L) | Max: 125 x 88 mm (4.92″ x 3.46″) |
| Power Requirement | USB Power: 5V DC |
| Action Button | Dual Auto Detect Sensors |
| Interface | USB 2.0 |
| Net Weight | 0.86 Kgs (1.91 Lbs) |
| Dimensions (W x D x H) | Without Cover: 195 x 139 x 100 mm (7.68″ x 5.47″ x 3.94″) With Cover: 195 x 139 x 153 mm (7.68″ x 5.47″ x 6.02″) |
| Operating System | Windows 7 / 8 / 8.1 / 10 / 11
Linux compatibility is only available for system integrators. Please contact [email protected] for more info.(SDK only) |
| Hardware Requirements | 2.0 GHz CPU processor or higher[1] [1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher 4 GB RAM minimum (Recommended: 8 GB or more) 6 GB of hard-disk space for program installation USB2.0 or above Display dimensions of 1024×768 or greater |
