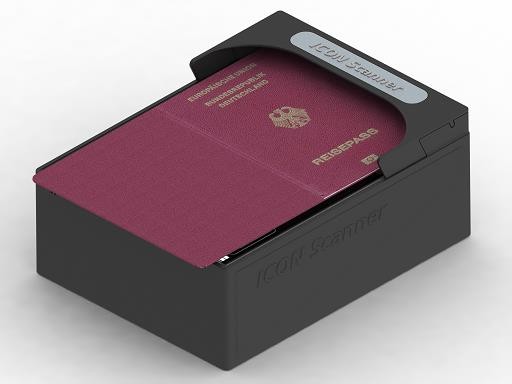

Full–Page ID Document Scanner

The ICON Scanner X is designed for ID document scanning, allowing for quick read results and image capture. Captured data can be transferred to any host system for processing and its high–resolution  and reflection free images provide a solid basis for document checks with, for example, an authentication software tool.

Your Advantages:

•Smallest full-page scanner on the market
•Up to 600 dpi high–resolution scans
•Reflection removal scan technology
•Usage of three light sources (VIS, IR, UV)
•Scan with or without cover for all light sources
•Certified with leading authentication software providers
•OEM version available for kiosk or e-gate integration

Features:

• OCR/MRZ reader for ID1, ID2 and ID3 document types (ICAO 9303, ISO/ IEC 18013)
• Full–page high-resolution images in visible, IR and UV (optional)
• Reflection removal prevents spots or highlights caused by laminate or holographic print
• Automatic document detection
• Background elimination
• Scan with or without cover for all light sources possible

User Feedback:

• Light: programmable multicolor LEDs
• Sound: programmable buzzer with adjustable volume and pitch providing clear user feedback

Reading Capabilities:

• MRZ reading – ID cards, passports, visa, driving licenses (ICAO 9303, ISO/IEC 7501–1, ISO 18013–3)
• VIZ reading (optional) – available for any ID document type e.g. front page of ID3, drivers‘ licenses information on supported document types and data fields available on request
• RFID & NFC (optional) – RFID documents according to ISO 14443 (Type A/B), ISO 7816 (incl. US passports), ICAO 9303 as well as NFC support

Certifications:

CE, FCC, WEEE, RoHS

Icon Scanner – Brochure
