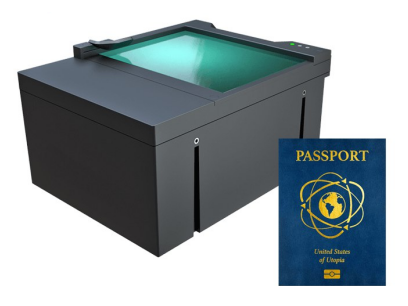

The Most Dependable Kiosk Solution
THE MOST DEPENDABLE KIOSK TURNKEY IDENTITY CAPTURE SOLUTION WITH NO MOVING PARTS
After years of being in service this powerful scanner boasts a high availability accurate and dependable solution you can count on. This is the perfect textbook user experience that supports full-page scanning for automated border control, airline check-in, ATMs and many other industry applications. [cite: 1, 2]

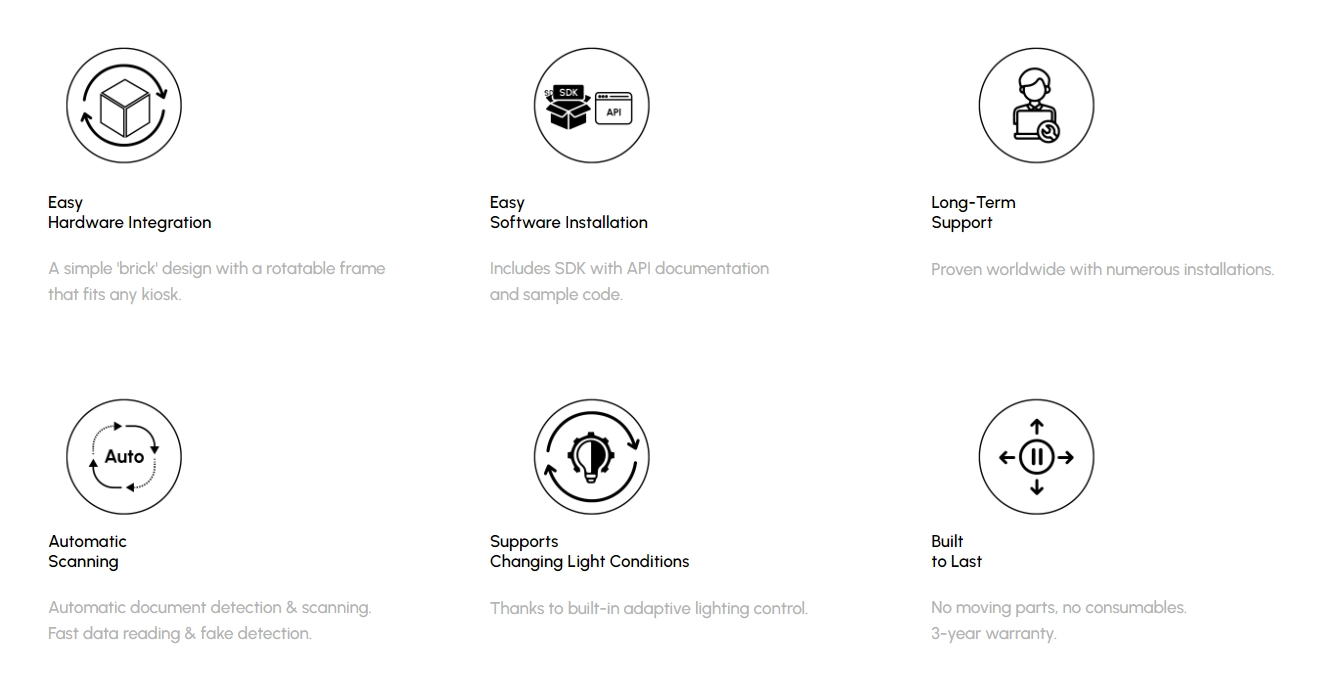

Key Features
- Simple Software Installation – SDK with API documentation and sample code included. [cite: 3]
- Multi-Faceted OS Support – Windows and Linux Drivers available for the driver SDK as well as TWAIN support. [cite: 4]

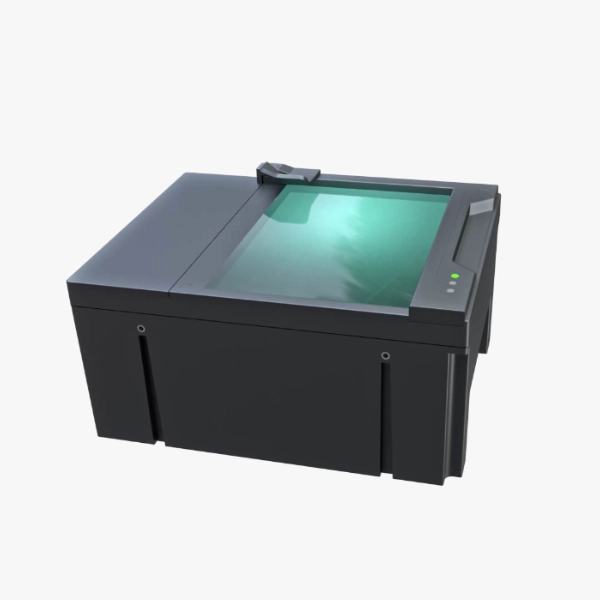

- Seamless Hardware Integration – Compact, brick-shaped design with a rotatable frame for easy kiosk installation. [cite: 5]

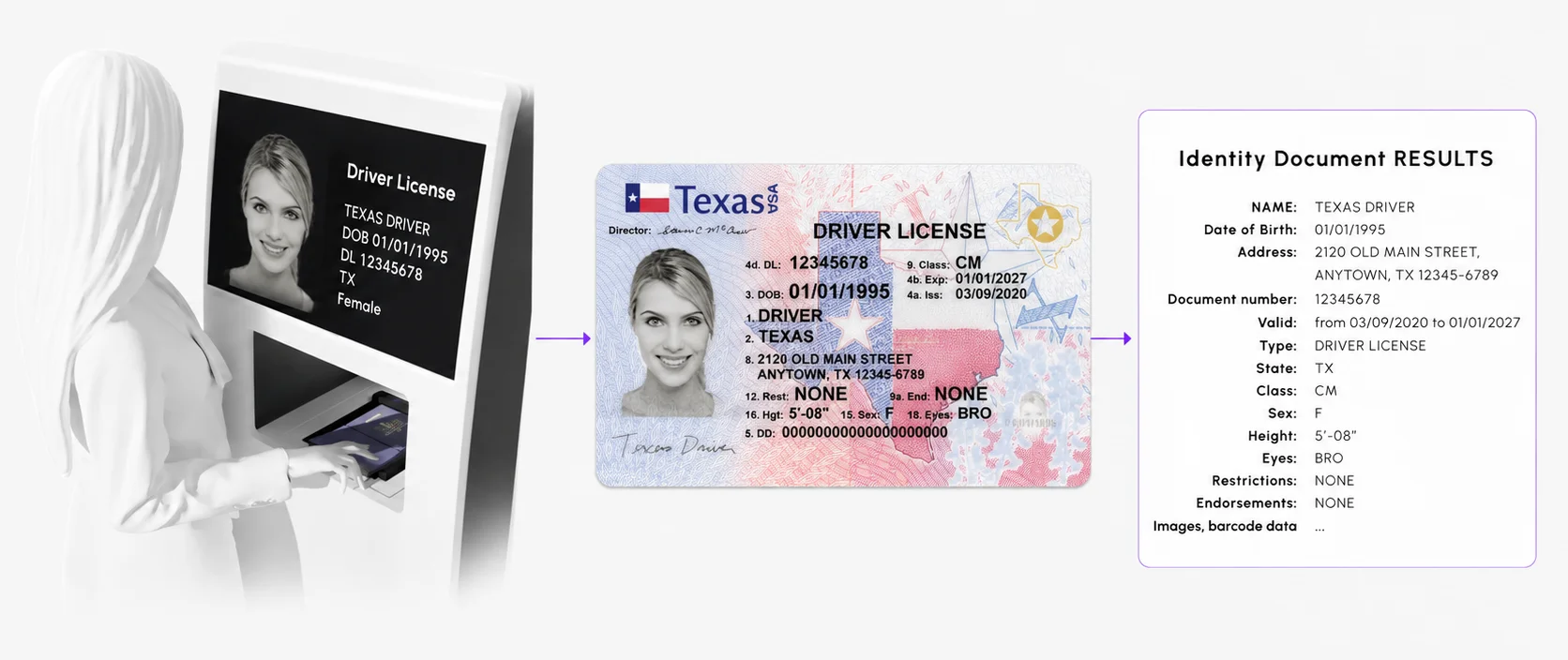

- Automated Scanning – Detects and scans documents instantly, ensuring fast data extraction and fraud detection. [cite: 6]
- Adaptable to Light Conditions – Built-in adaptive lighting ensures reliable performance in varying environments. [cite: 7]
- Durable and Reliable – Designed with no moving parts or consumables, backed by a 3-year warranty. [cite: 8]
Specifications
(Ideal for automated border control, airline check-in, and ATMs. Type of installation: Kiosk.) [cite: 9]
Imaging
| Active Scan Area |
129 x 89 mm |
| Illumination Sources |
LED visible white, Infra-red (B900), Ultra-violet (UVA) |
| Provided Images |
Visible, IR, OVD image, glare-free image, UV image |
| Image Formats |
BMP, JPG, JPG2000, PNG |
| Image Color Depth |
24 bits/pixels [RGB, 8 bits/pixels (IR image)] |
Reading Capability
| Automatic Document Detection (ADD) |
YES |
| Reflection Removal (RR) |
YES |
| Adaptive Light Control |
YES |
| ICAO MRZ Reading |
ICAO compliant documents per ICAO 9303 specification Part 1, Part 1v2, Part 2, Part 3 and Part 3v2 for Type ID-1, ID-2 and ID-3 MRZ Optical Character Recognition |
| VIZ Reading Option |
Available with Adaptive Recognition VIZ OCR software |
| Barcode Reading |
1D: UPC-A, EAN8, EAN13, Code39, Code128 and Interleaved 2 of 5 (ITF) 2D: PDF 417, Data Matrix, QR Code, Aztec Code AAMVA compliant PDF4/7 and IATA BCBP |
| RFID Reading |
Reading and writing contactless ICs according to: ISO 14443 Type A & B, BSI TR-03105; All standardized rates up to 848 Kbps |
Programming & Interfaces
| Supported Operating Systems |
Windows 7, 8, 8.1, 10+ Linux (ask for details) |
| Software Development Kit (SDK) |
Complete SDK including DLLs and demo programs |
| Programming Languages |
C/C++, C#, Visual Basic 6.0, Delphi, VB.NET, Java |
| General Interfaces |
AR native, Twain and Acuant AssureID |
| Status Indicators |
Four programmable status LEDs (blue, green, yellow, red) |
| Advanced Document Authentication |
Data consistency checks: MRZ; RFID; B900 and UV dull paper check; Bearer's printed photo vs. RFID DIGI2 |
| Additional Authentication Options |
VIZ and non-ICAO document reading; Automated verification based on document specific security features in visible white, IR and UVA |
| PC Connection |
USB 2.0 high speed (USB 3.0 compatible) |
| Firmware Upgrade |
Automatic, via USB |
Mechanical and Other Data
| Size with passport fixer |
150 mm × 195 mm × 117 mm (5.90” × 7.67” × 4.60”) |
| Size without passport fixer |
150 mm × 195 mm × 108 mm (5.90” × 7.67” × 4.25”) |
| Weight |
1.01 kg (2.15 lbs) |
| Operating Temperature |
5 °C to 45 °C (45 °F to 113 °F) |
| Operating Humidity |
0-90 % (non-condensing) |
| Power supply (V DC) |
12 V DC |
| Case Housing |
Sturdy ABS-PC plastic |
| Maintenance |
No moving parts, maintenance-free operation |
| Warranty |
3-year warranty, upgradeable |
