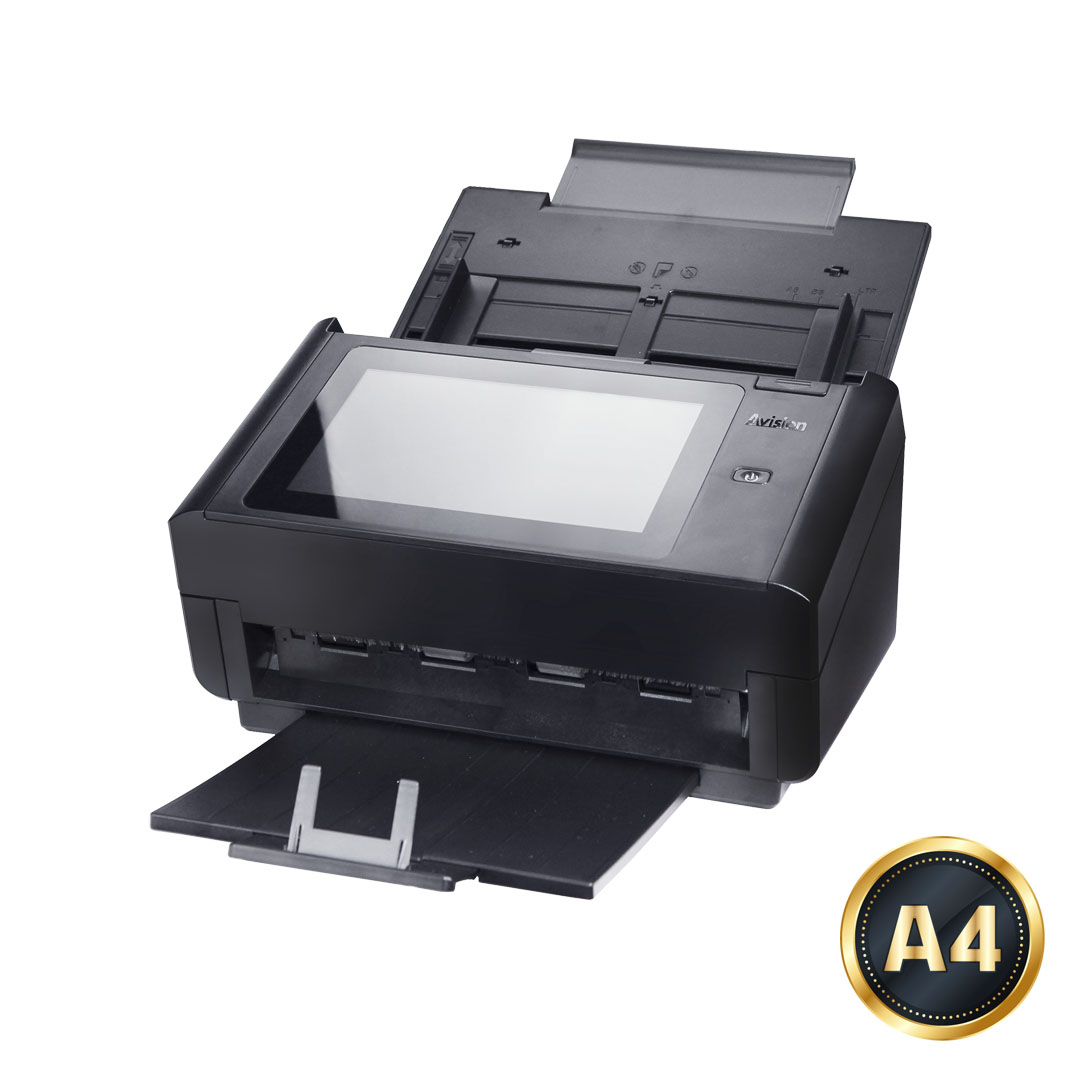

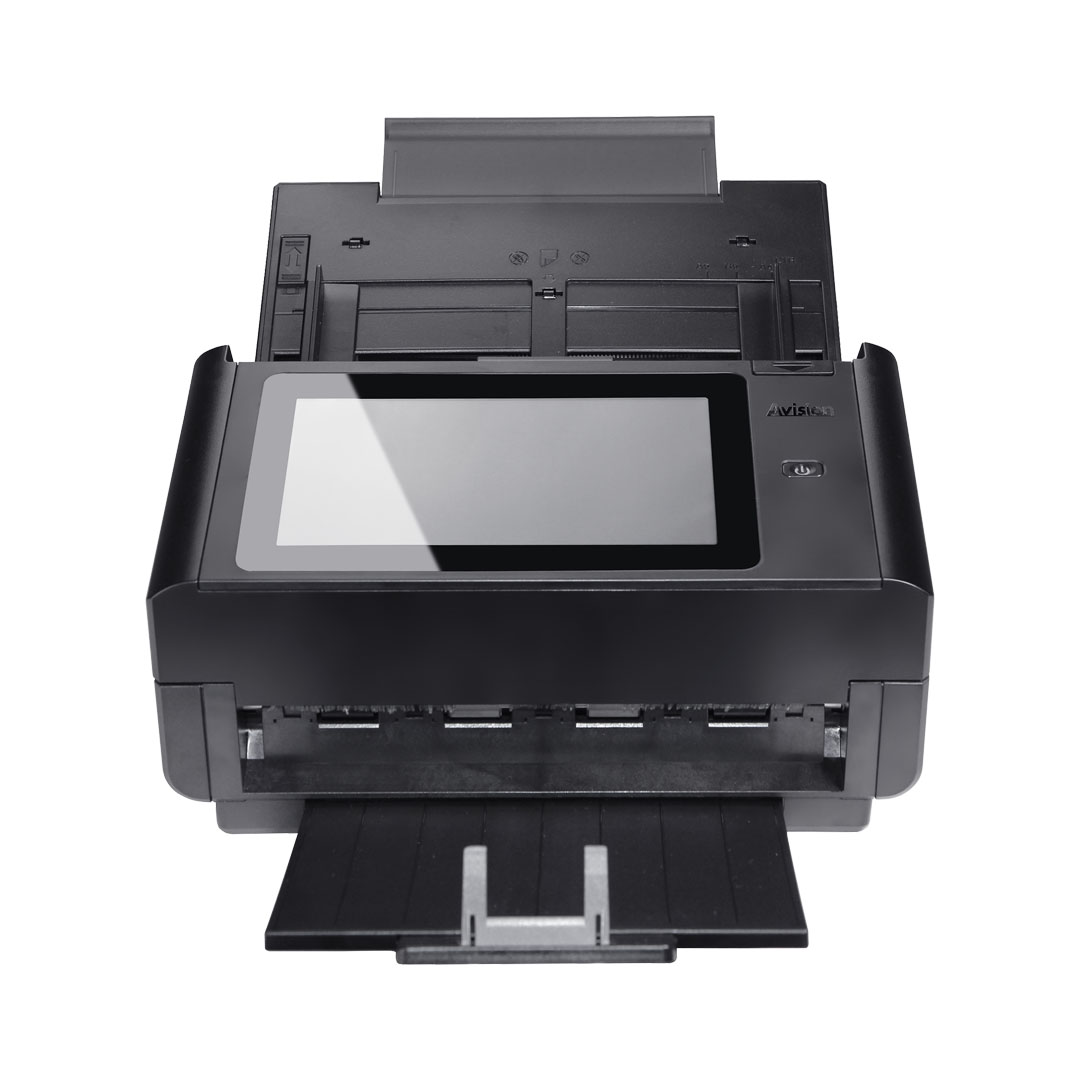

Avision AN360W

Description

8″ LCD Touch Screen

The large 8” LCD touch screen makes it easy to scan and share documents. By assigning your frequently used settings and scanning to destinations as Shortcuts, the AN360W allows you to streamline your workflow and complete your scanning task in a single step. Configuration and management of the scanner can also be performed via the LCD touch screen.

‍

Convenient Mobile Scanning

The AN360W features Wi-Fi connectivity for wireless scanning, allowing you to scan and receive images directly on your mobile device.

‍

Support Form Document Up to 242 x 356 mm

The AN360W scanner boasts a unique and innovative design compared to its predecessors – the ability to accommodate form documents up to 242 x 356 mm. The extended document width, from 216 mm to 242 mm, makes the AN360W scanner more competitive in fitting a wider range of documents.

‍

Convenient Scanning

A direct USB interface is available for scanning files directly to your USB flash drive.

‍

A Duplex Scanner Suited for Documents and Cards

Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varying sizes and weights can be scanned. The scanner accepts small documents down to 50 x 50 mm and larger documents up to 242 x 356 mm in the ADF. The automatic document feeder is also robust enough to feed paper up to 413 g/m² and embossed hard cards such as ID cards, credit cards, driver’s licenses, and tax IDs up to 1.25 mm in thickness.

‍

Reverse Roller Enhances Feeding Reliability

Designed with the innovative reverse roller for paper separation, the AN360W delivers outstanding feeding reliability and operational productivity by effectively reducing the risk of a multi-feed or paper jam.

‍

Ultrasonic Multi-Feed Detection

With the built-in ultrasonic multi-feed detection capability, overlapped papers are detected through document thickness. When a multi-feed is detected, an error message will be displayed.

‍

A Compact Design to Save Your Space

Featuring a stylish design and a compact footprint of 316 x 207 x 178 mm, the AN360W scanner can fit perfectly on a desk in any working environment.

‍

Powerful Bundled Software Applications

The AN360W scanner comes with a TWAIN driver and is bundled with a suite of powerful software applications that include Avision Button Manager, AVScan, and PaperPort. With Button Manager, you can create searchable PDFs, scan and send images to e-mail servers, printers, or clouds such as Google Drive™, Facebook, or Evernote® with just a simple press of a button. AVScan and PaperPort are highly effective image processing and document management software that help you streamline your task more efficiently.

‍

Features

• Fast scanning, 60ppm / 120ipm in color, grayscale, and monochrome at 300 dpi
• Scan and send images to e-mail, a shared folder (CIFS), an FTP folder, cloud servers (Google Drive™, Dropbox, Evernote®), a USB flash drive, and the scanner’s internal memory
• Support for form paper up to 242 x 356 mm
• Image preview feature
• Daily duty cycle up to 6,000 sheets
• Robust 100-page automatic document feeder
• Auto crop and deskew a document with its image processor to enhance scanning speed
• Reverse roller technology delivers outstanding feeding reliability
• Hard and embossed card scanning up to 1.25 mm in thickness in portrait or landscape feeding
• Scan to cloud servers via the bundled Button Manager software
• LED technology
• Long page scanning up to 6,000 mm
• Auto power off setting

‍

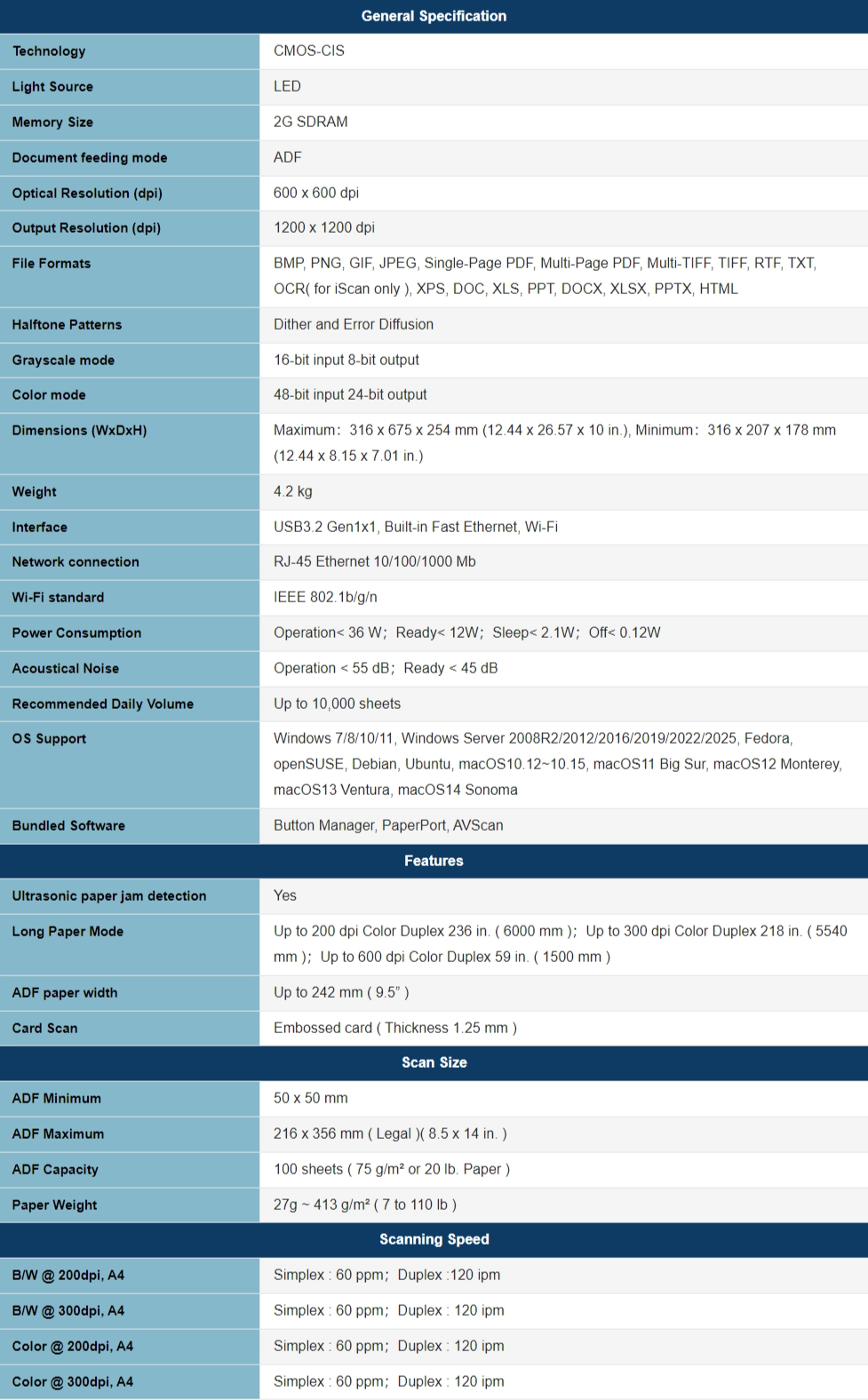

General Specification
