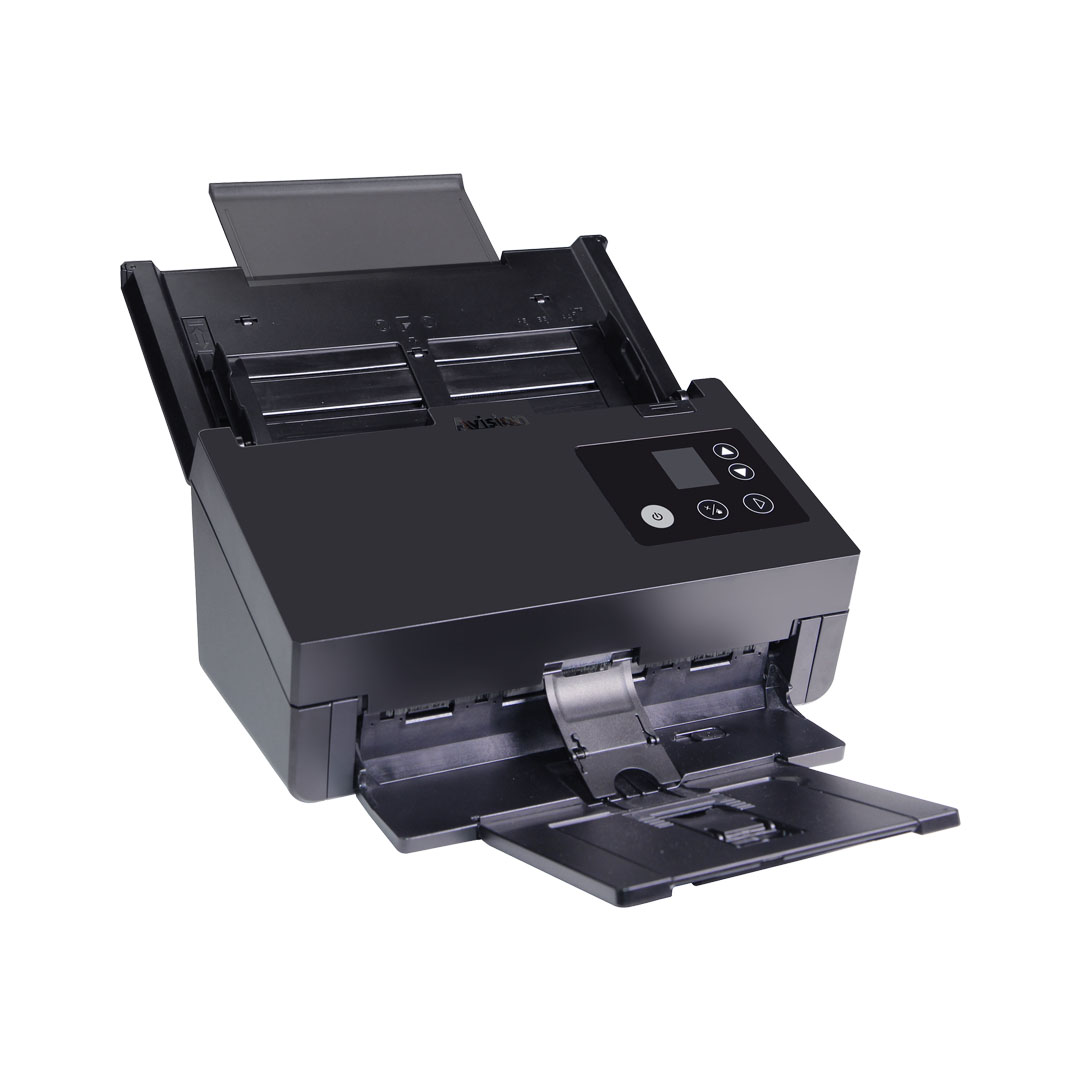

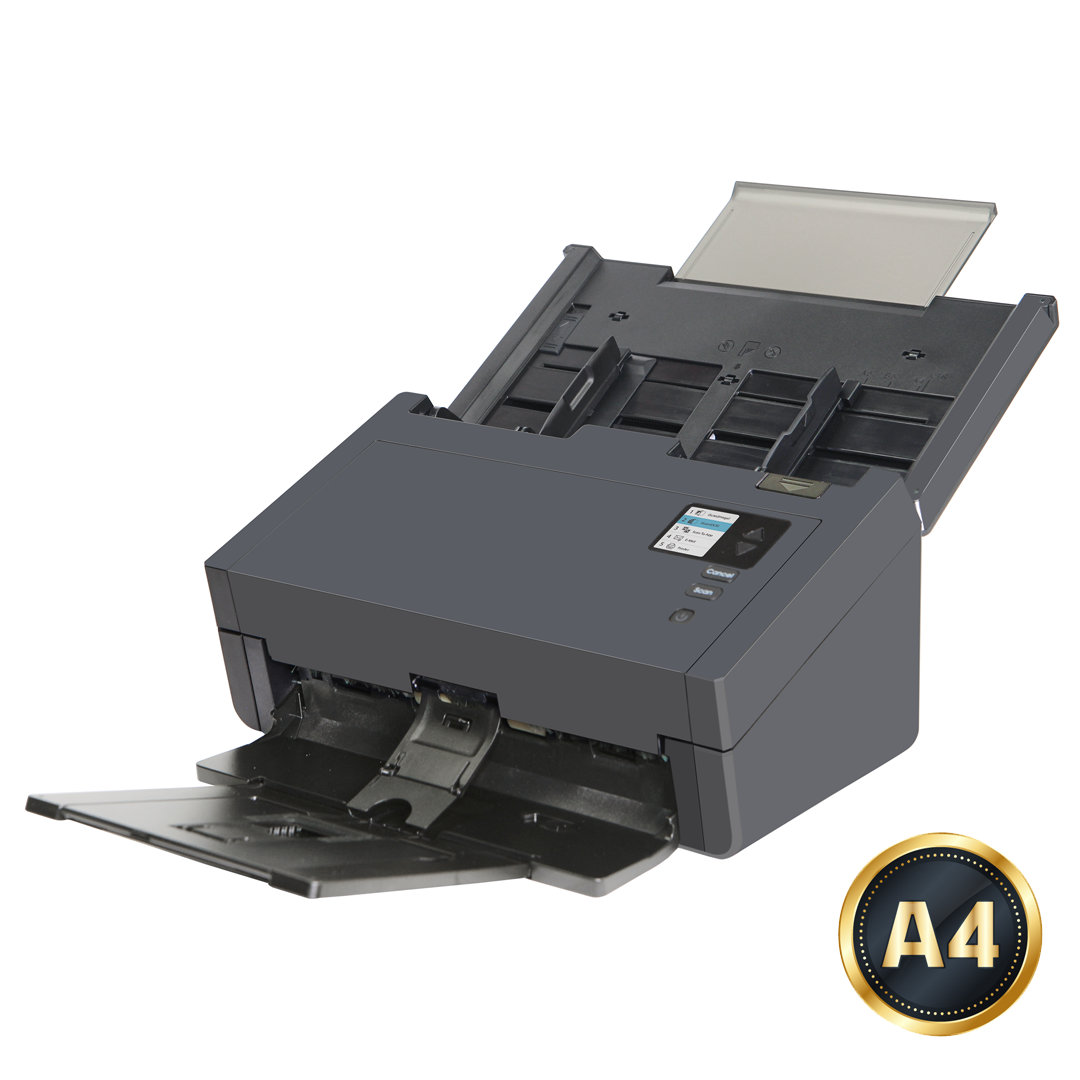

Avision AD370

Description

A Fast, and Affordable Sheet-Fed Scanner

The Avision AD370 series is a 70 page-per-minute, duplex scanner that is fast, reliable, and affordable for businesses where scanning plastic ID cards, business cards, documents or other heavy card stock is necessary. Embedded with Avision-developed image processor, the scanned images can be automatically cropped, straightened, and optimized with enhanced speed.

‍

Color, and Graphical LCD Display

The AD370 series is easy to use through the LCD display and buttons on the panel. By selecting your destination and pressing the “Scan” button, the scan can be done and the scanned image can be sent to your specified destination application such as email, printer, or your favorable image-editing software application. Up to nine frequently used scan settings and destinations can be preset for different scanning needs.

‍

A Duplex Scanner Suited for Document and Cards

Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varying sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts (2” x 2”) to business documents (8.5 x 14 in.). The auto document feeder is also robust enough to feed paper up to 413 g/m2 (110 lbs) and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance cards up to 1.25mm in thickness.

‍

Reverse Roller Enhances Feeding Reliability

Designed with the innovative reverse roller for advanced paper separation capability, the AD370 delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.

‍

High-Volume Daily Duty Cycle

The scanner can be used to scan up to 15,000 pages per day through the 100-page automatic document feeder. The data indicates that this scanner is designed to scan documents in any application requiring frequent document and hard card scanning.

‍

Ultrasonic Multi-Feed Detection

With the ultrasonic multi-feed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning documents with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thicknesses.

‍

Compact Design to Save Your Space

The AD370 series features a unique and stylish design as both the input and output paper tray can be folded when not in use. The paper tray also helps to protect the unit from dust. Unlike bulky conventional scanners, the slim AD370 can be easily carried and fit on a desk without taking up a lot of space.

‍

Powerful Bundled Software Applications

The AD370 series comes with TWAIN and ISIS drivers, and is bundled with a suite of powerful software applications that include Avision Button Manager, AVScan and PaperPort. With Button Manager, you can create searchable PDFs, scan and send images to email, printer, or cloud servers such as Google Drive™, or Evernote® with just a simple press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.

‍

Convenient mobile scanning (for AD370WN)

Built-in with a Wi-Fi dongle, the AD370WN can work as a wireless device to scan and receive images directly from your mobile devices through Avision’s MB App.

‍

A network document scanner (for AD370N/AD370WN)

With a network port at the back side, the AD370N/AD370WN allows you to use it as a network scanner. This means users in the intranet environment can share the scanner and obtain the scanned image from their individual computer.

‍

Features

• Fast, 70ppm/140ipm scanning in color, grayscale and monochrome (300 dpi, color)
• Auto crop and deskew a document with the advanced Avision-developed image processing unit to enhance the scanning speed
• Support form paper up to 8.5 x 14 in.
• Daily duty cycle up to 15,000 sheets
• Robust 100-page automatic document feeder (80 g/m2, 20 lb)
• Reverse roller technology delivers outstanding feeding reliability
• Hard and embossed card scanning up to 1.25 mm in thickness in portrait or landscape feeding
• Press and scan to cloud servers via the bundled software Button Manager
• Earth-friendly LED technology
• Long page scanning: 5540 mm (218”) (300 dpi, color) / 6096 mm (240”) (200dpi,color)
• Auto power off setting

‍

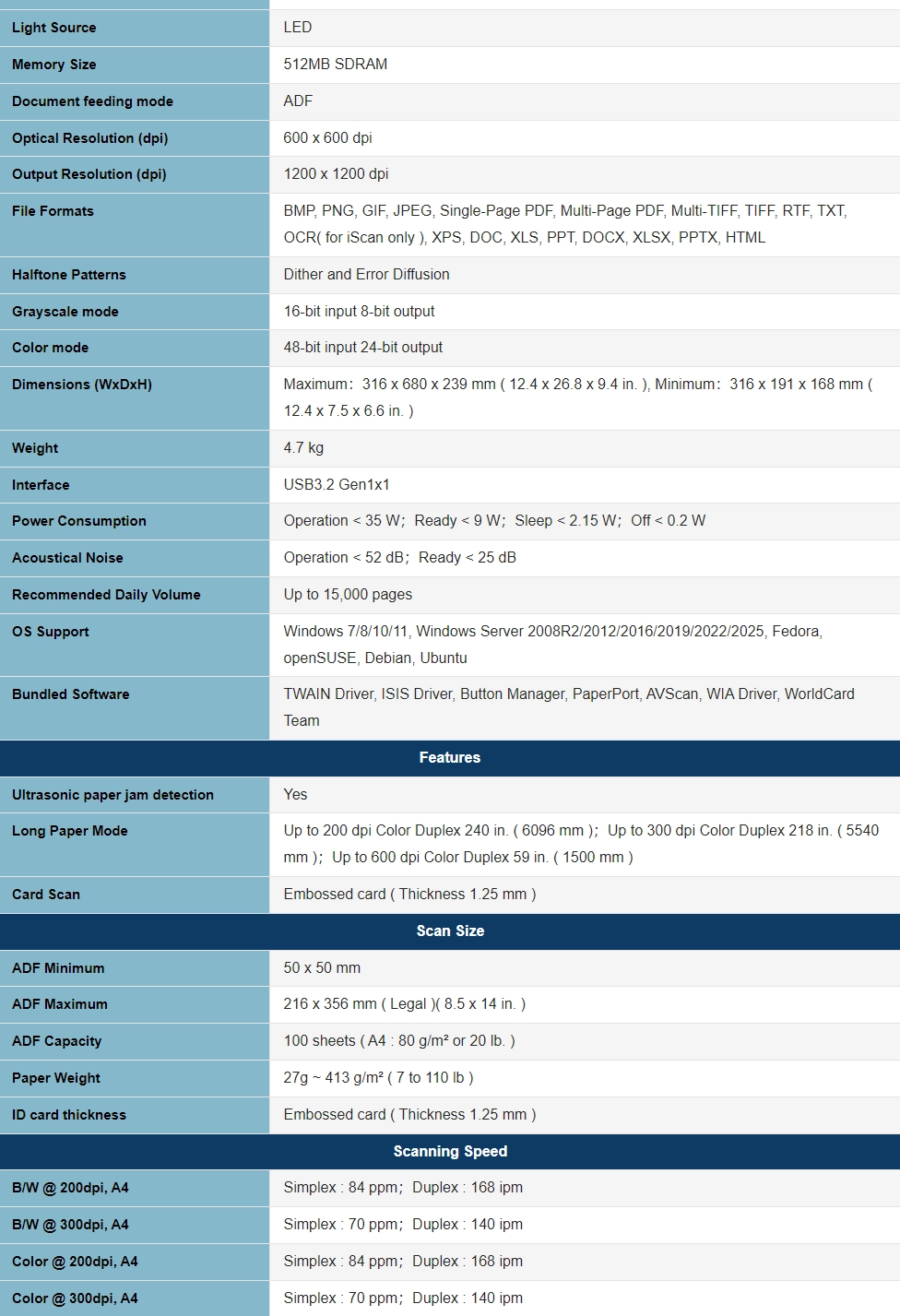

General Specification
